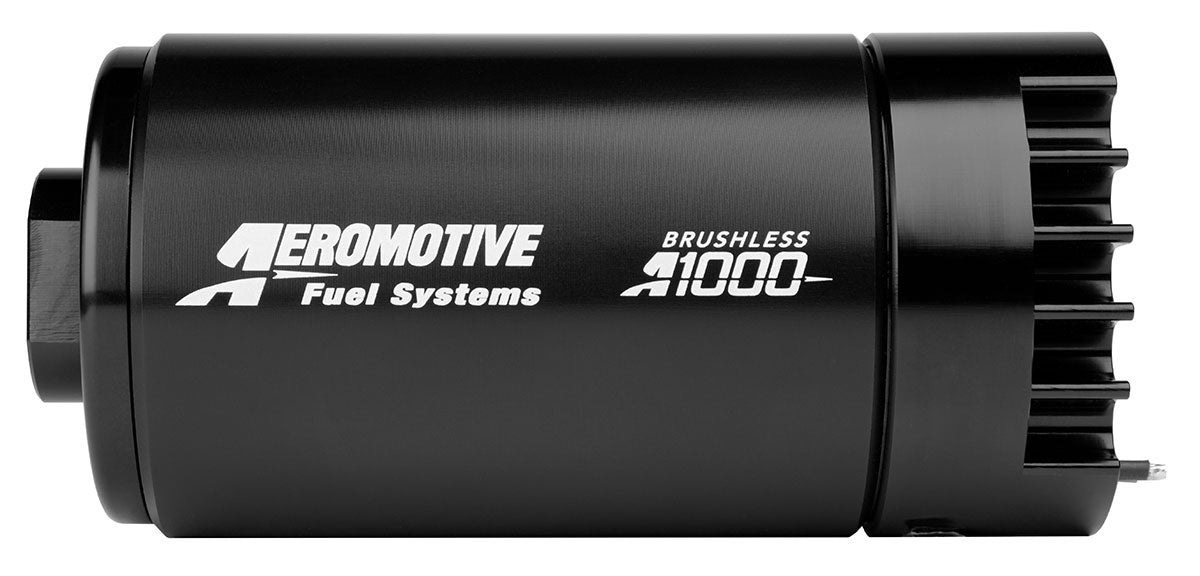

A1000 Brushless Fuel Pump -10 ORB Inlet/Outlet, Suit Carb & EFI Applications

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushlessfuel pump series. The same A1000 Fuel Pump the world has come to trust and depend on, now available with the latest brushless-motor technology. Built for up to 65 psi of sustained pressure, featuring our bedrock solid roller vane design that primes easily, reduces friction and improves efficiency.

Features:

• ORB-10 inlet and outlet ports.
• For EFI applications use regulator P/N13303 or P/N 13139.
• For carburettedapplications use regulator P/N13204 or P/N 13304.
• Fully submersible for custom, in-tank placement.
• Perfect for'blow-through' carburetted engines up to 1200 FWHP.
• Fuel Injected Engines:
• up to 1300 FWHP - naturally aspirated
• up to 1000 FWHP - forced air induction
• Carbureted Engines:
• up to 1500 FWHP - naturally aspirated
• up to 1200 FWHP - forced air induction
• E85 Compatible, reduce max FWHP by30%
• Lighter than the traditional A1000 pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• Integral, external brushless controller for clean installation, coolerfuel and enhanced reliability.
• Quieter than the traditional A1000 pump.
• ORB-10 inlet andoutlet ports.
• EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
• Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts

Brushless motors employ sensors to monitor rotor angle to providefaster and more reliable phaseshifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature andthe motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump). With more torque per watt and a higher torque to weight ratio, brushless motors produce lowernoise and deliver higher reliability.

With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pumpRPM and flow, producing a flatter flow curve. Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.
