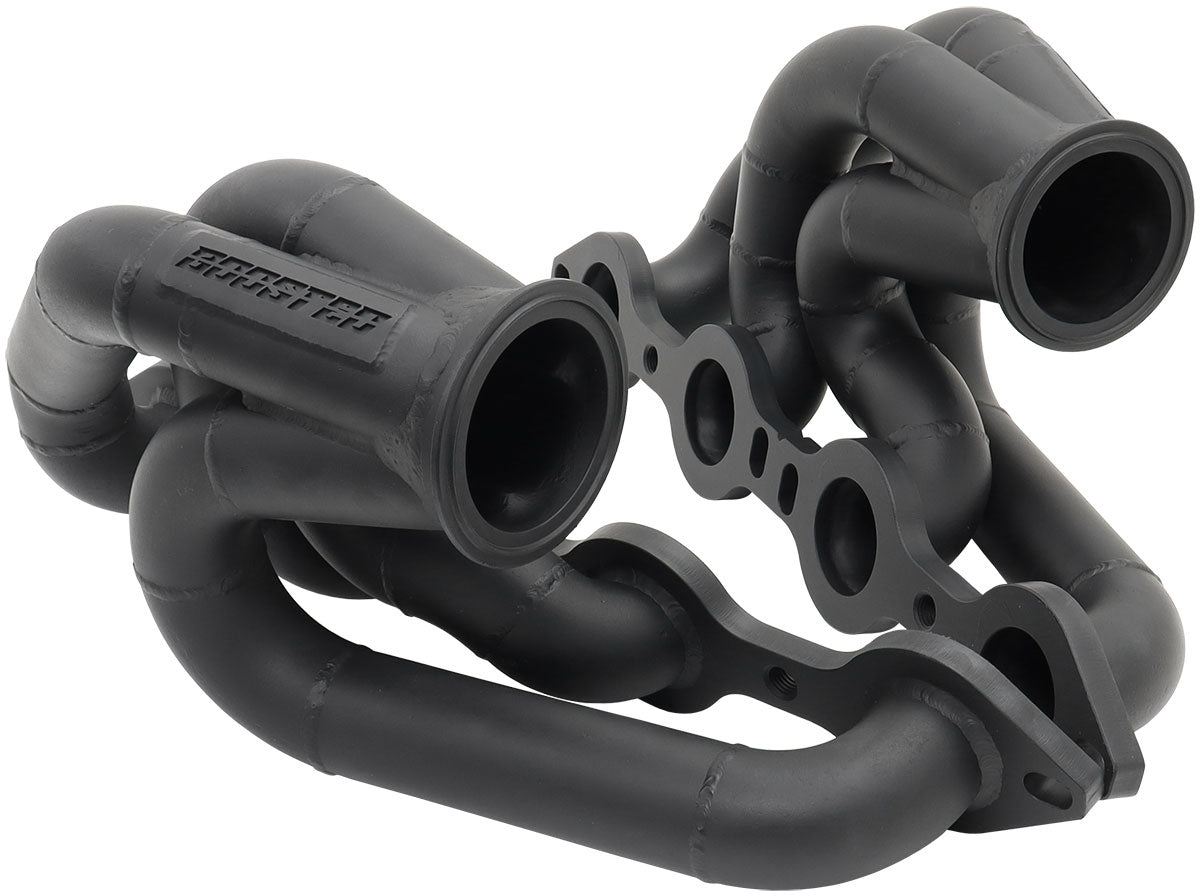

GM LS Twin Turbo Long Runner Manifolds Forward Facing, High Mount with 2.5" V-Band, Sold As a Pair

GM LS twin turbo Long Runner steampipe manifolds.
Will fit inbetween 27" (685mm)of Chassis Frame Distance
Sold as a pair.
Forward facing 2.5"V-Bands welded on each end.
Recommend to install inthe high mount position.
Recommend to sell GM LS twin turbo turn up adapters to complete builders kit.
Coil relocation is also recommended as this turbo manifold will be extremely close to the ignition coils onfactory valve covers. Recommend to mount coils on the side of the engine block underneath with 90 degree spark plug boots with ignitionleads running down toward the oil pan.

Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge togetherat a point in the middle, pointing straight into the turbine. No pipes enter acrosseach other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.

Aeroflowturbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent steam pipe with CNC Machined header and turbo flanges. Each flange is milled after welding to ensureprecise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, andthe position the wastegate sits in.

Each manifold is finished with a black enamel coat for shipping purposes only. We do recommendto have these manifolds eitherwrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.

TheAeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
