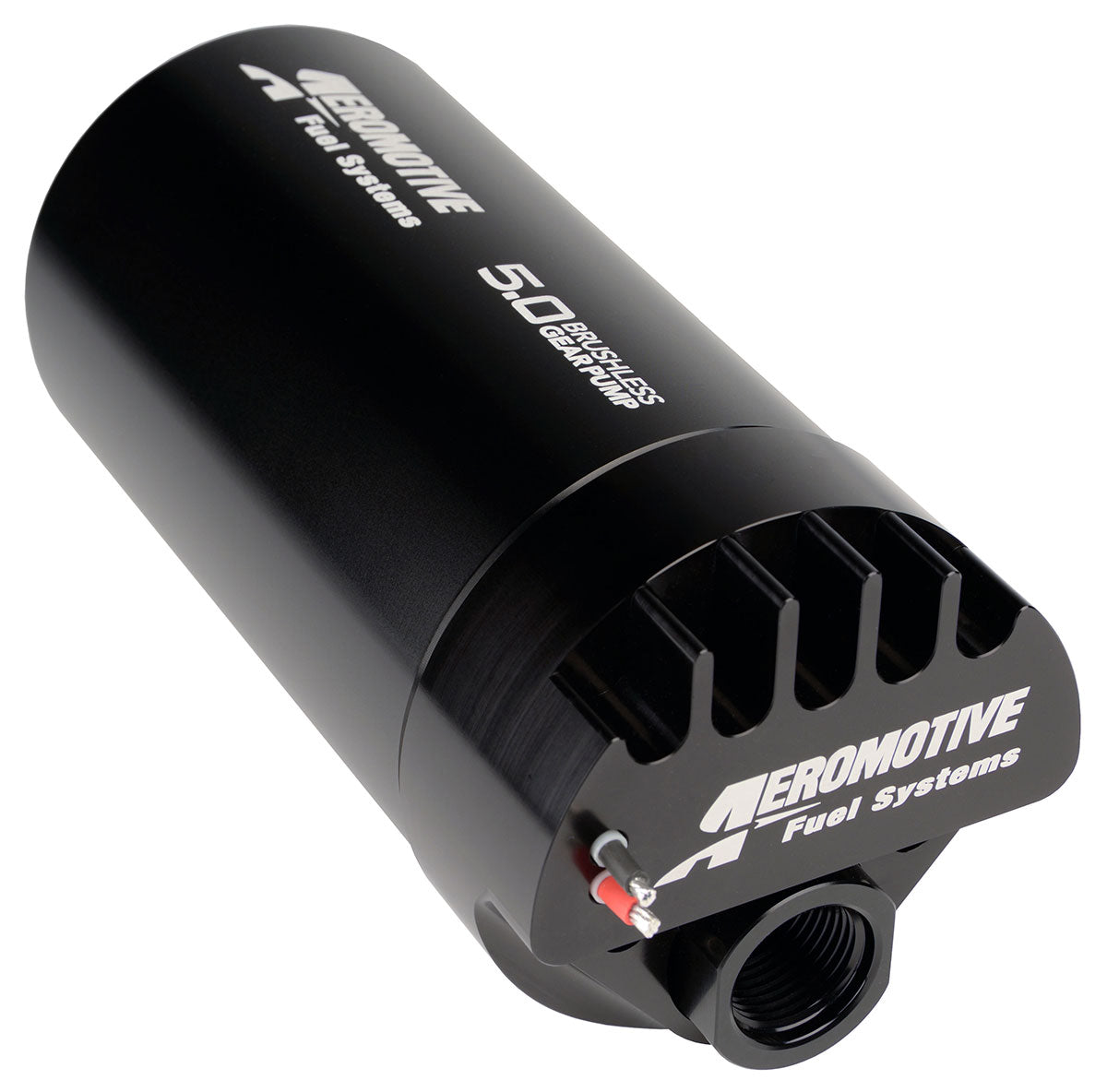

Pro Series 5.0 Brushless Fuel Pump - Round Body -12 Inlet, -10 Outlet, Suit Carb & EFI Applications

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushlessfuel pump series. The 5.0 Brushless Gear Pump, the flagship of Aeromotive electric fuel pumps, yields 5 gallons per minute at 13.5-V and 40-PSI. It features a -12 AN inlet and -10 AN outlet. Built for up to 90 psi of sustained pressure, this new pump features our integral, internal Spur-Gear pumping mechanism which allows for higher pressures with minimal drop in flow. Aeromotive is proud to offer this new 5.0 Brushless Gear Pump, which is the single, highest flowing electric fuel pump available on the market today.

Features:

• ORB-12 inlet and ORB-10 outlet ports.
• For EFI applications use regulator P/N13134 or P/N 13110.
• For carburettedapplications use regulator P/N13202 or P/N 13212.
• Capable of 90-PSI continuous operating pressure, 150 PSI peak pressure, base plus boost.
• Fully submersible for custom, in-tank placement.
• Perfect for'blow-through' carburetted engines up to 2,700 FWHP (racegas).
• Fuel injected engines:
• up to 3400 FWHP - naturally aspirated
• up to 2600 FWHP - forced air induction
• Carburetted engines:
• Up to 3600 FWHP - naturally aspirated
• Up to 2700 FWHP - forced air induction
• E85 Compatible, reduce max FWHP by30%
• Lighter than the traditional external mount pumps.
• Reduced currentdraw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for clean installation, coolerfuel and enhanced reliability.
• ORB-12 inlet and ORB-10 outlet ports.
• EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
• Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

Brushless motors employ sensors to monitor rotor angle to providefaster and more reliable phaseshifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature andthe motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump). With more torque per watt and a higher torque to weight ratio, brushless motors produce lowernoise and deliver higher reliability.

With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pumpRPM and flow, producing a flatter flow curve. Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.
