BRAND | AEROMOTIVE

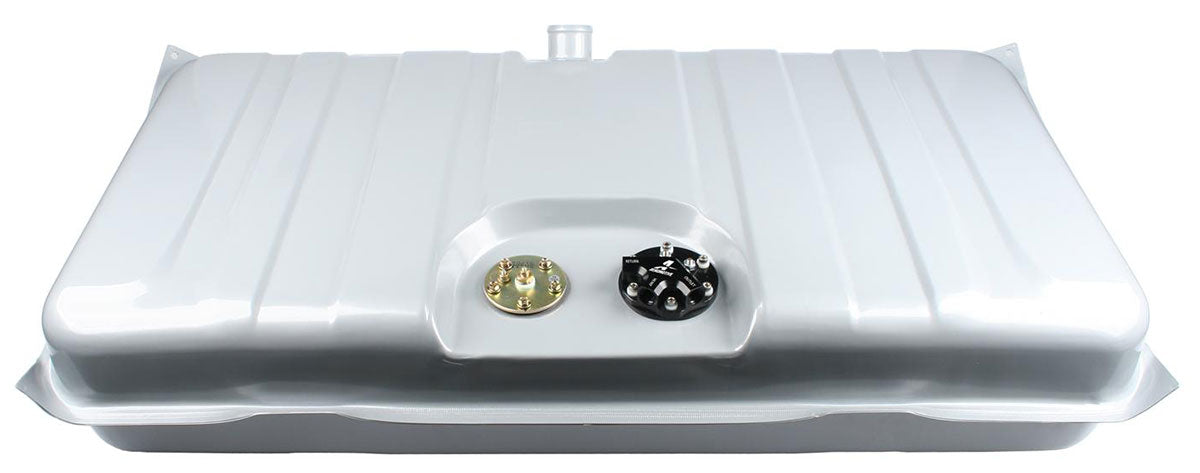

340 Stealth Fuel Tank Suit 1969 Camaro With -6AN Inlet/Outlet & Return

340 Stealth Fuel Tank Suit 1969 Camaro With -6AN Inlet/Outlet & Return

SKU: ARO18658 | Fuel System
Regular price $2,310.00 NZD
Regular price Sale price $2,310.00 NZD
Sale Sold out

These Aeromotive 340 Stealth fuel tanks feature ourground breaking 340 Stealth electric fuel pump mounted to our CNC machined, billet aluminium hat and hanger assembly. With an incredible 340 lph flow, using a turbine pumping mechanism for increased durability and quietoperation, the Stealth Tank isequipped with the most proven,powerful, quiet operating fuelpump available in it's class.

All Aeromotive Stealth fuel tanks feature an innovative baffle and tray design to control fuel slosh, ensuring good street drivability even even at lowerfuel levels. A fuel level sending unit with the correct ohm rating for the factory gauge in the dash comes pre-installed. The 340 Stealthpump has its own pre-pump filter sock for protection andis supported by a billet hat with robust electrical bulkhead connections and ORB-06 outlet, return and ventports, ensuring high flow capacity and a positive, leak free seal at any pressure.

For extra protection and long-term good looks, most Stealth tanks are finished with a silver powder-coat exterior.  Exceptions to this are the early Mustang and 32-34 Ford Stealth Tanks, which are painted silver, allowing them to be prepped and painted later to match the car if desired.

  • Perfect for EFI and carbureted engines
  • OEM appearanceand 18-gallon capacity
  • Durable, powder-coat silver exterior finish
  • High flow, quiet 340 Stealth in-tank fuelpump
  • Wide, lateral internal surge baffle
  • Large, EFI friendly fuel pump reservoir
  • 0-90 Ohm fuel level sending unit
  • Billet hat with ORB-06 outlet, return, vent ports
  • Fully assembled out of the box, ready to install

340 Stealth Tank Application Specs:

Fuel Injected Engines (gasoline)

  • Up to 850 HP - naturally aspirated.
  • Up to 700 HP - forced air induction.

Carbureted Engines (gasoline)

  • Up to 1000 HP - naturally aspirated.
  • Up to 800 HP - forced air induction.
