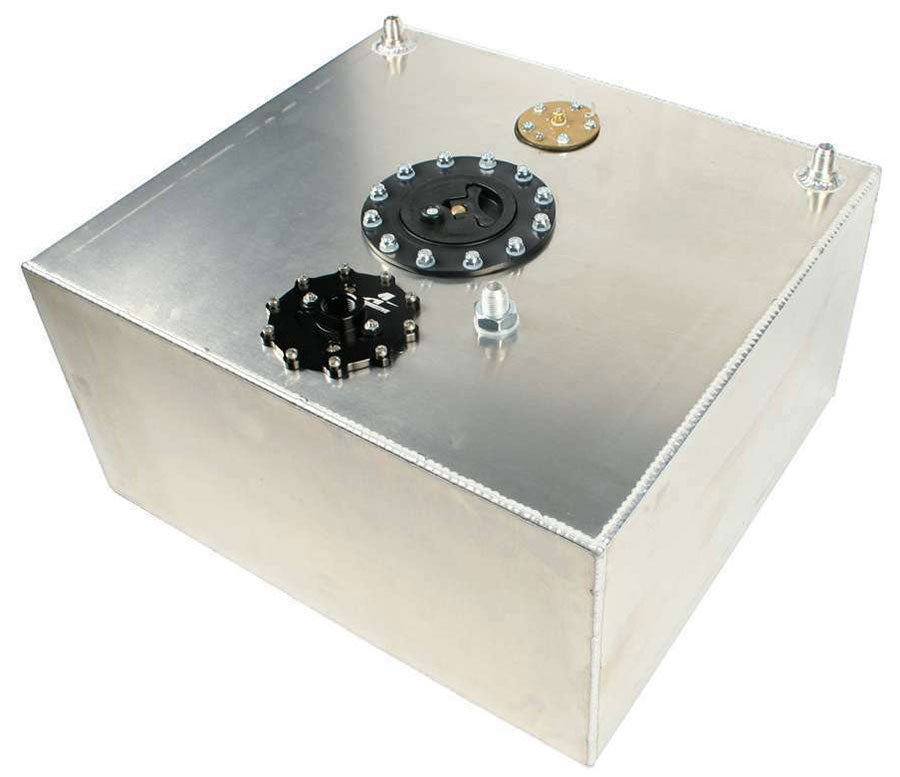

A1000 Stealth Fuel Cell 15 Gal (57 Litres) With -8AN Return & Roll-Over Valve & Fuel Sender
A1000 Stealth Fuel Cell 15 Gal (57 Litres) With -8AN Return & Roll-Over Valve & Fuel Sender
Truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column offuel at the pickup point, eliminating fuel slosh issues making these cells perfect forany application from autocross, to road racing to drifting and off-road.
Simply strap the cell in, hook up your feedand return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.
With either the A1000 or the Eliminator Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in anything. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy.
Fuel Pump Horsepower
Fuel Injected Engines: GAS
- up to 1300 HP – naturally aspirated
- up to 1000 HP – forced air induction
Carbureted Engines: GAS
- up to 1500 HP – naturally aspirated
- up to 1200 HP – forced air induction
Fuel Injected Engines: E85
- up to 910 FWHP – naturally aspirated
- up to 700 FWHP – forced air induction
Carbureted Engines: E85
- up to 1050 FWHP – naturally aspirated
- up to 840 FWHP – forced air induction
18660 Fuel Cell Features:
- A1000 Fuel Pump (internal) – P/N 11101
- 100 Micron Stainless Steel Fuel Filter
- 15 Gallon Capacity
- AN-08 Return Line Provision
- ORB-10 Outlet Port
- (2) AN-08 Vents with Rollover Valves
- 0-90 Ohm Universal Sending Unit
- Standard 12-Bolt Flush Mount Lid Assembly
- Natural Aluminum Finish
- Dimensions: 20" W x 18" L x 10" H
