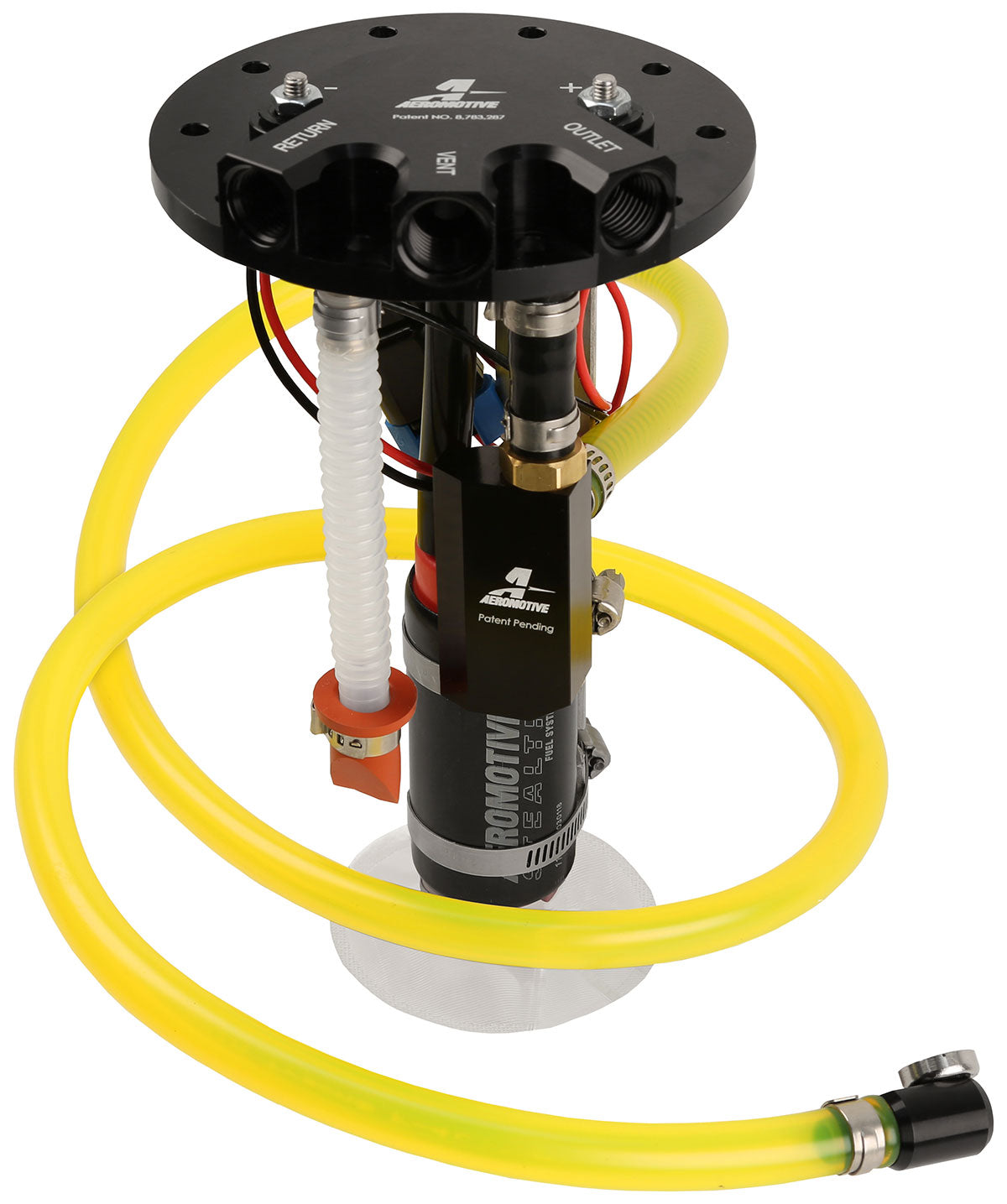

Apex Phantom In-Tank Kit -6AN Outlet, Supply, Return & Vent, 450LPH

The Apex Phantom utilizes advanced, patent-pending jet siphon technology to provide aconstant supply of cool fuel to the Phantom bladder, which allows the system to dominate in extreme applications from all out road-racing to radicalrock crawling. From extreme cornering loads to extreme off-angle vehicle environments, the Apex Phantommaintains fuel supply to the Phantom pump and bladder assembly, even when fuel tank levels are low and fuel is moving away from the pump location.

Aeromotive's Apex Phantom is highly recommended for most tanks, including saddle-bag tanks. The Apex Phantom opens the door to OEM convenience but with high horsepower pump flowrates that only Aeromotive pumps can provide. With the Aeromotive Apex jet siphon your Phantom System will have a continuous supply of fuel from the off-tank or saddle-bag to maintain optimalfuel supply, both to the Phantom baffle and then to themain tank. And you’ll never have to worry about priming the Apex Phantom thanks to theingenious, patent-pending jet siphon design that automatically floods and primes the pump, regardless ofwhether it gets a gulp of air when the off-tank is low, or even if the off tank runs dry before you get it refilled.

Features:

• Black anodized hanger assembly
• (3) ORB-06 Ports Supply, Return, Vent
• Fuel resistant baffle / basket (Includes: Foam and Bladder)
• Universal high flow pre-pump filter
• Modular design can be cut to height to fit almost any fuel tank
• Jet Siphon and 4-feet of gasoline and ethanolrated suction line
• Must be used witha return style EFI system
• Powerful, two-magnet system, secures pickup line in the exact intended position
• For even more fuel control, add Phantom Bladder Baffles
• 340lph versionsupports - 595hp EFI / Forced Induction and 725hp EFI / Naturally Aspirated
• 450lph version supports - 700hp EFI /Forced Induction and 975hp EFI/ Naturally Aspirated
