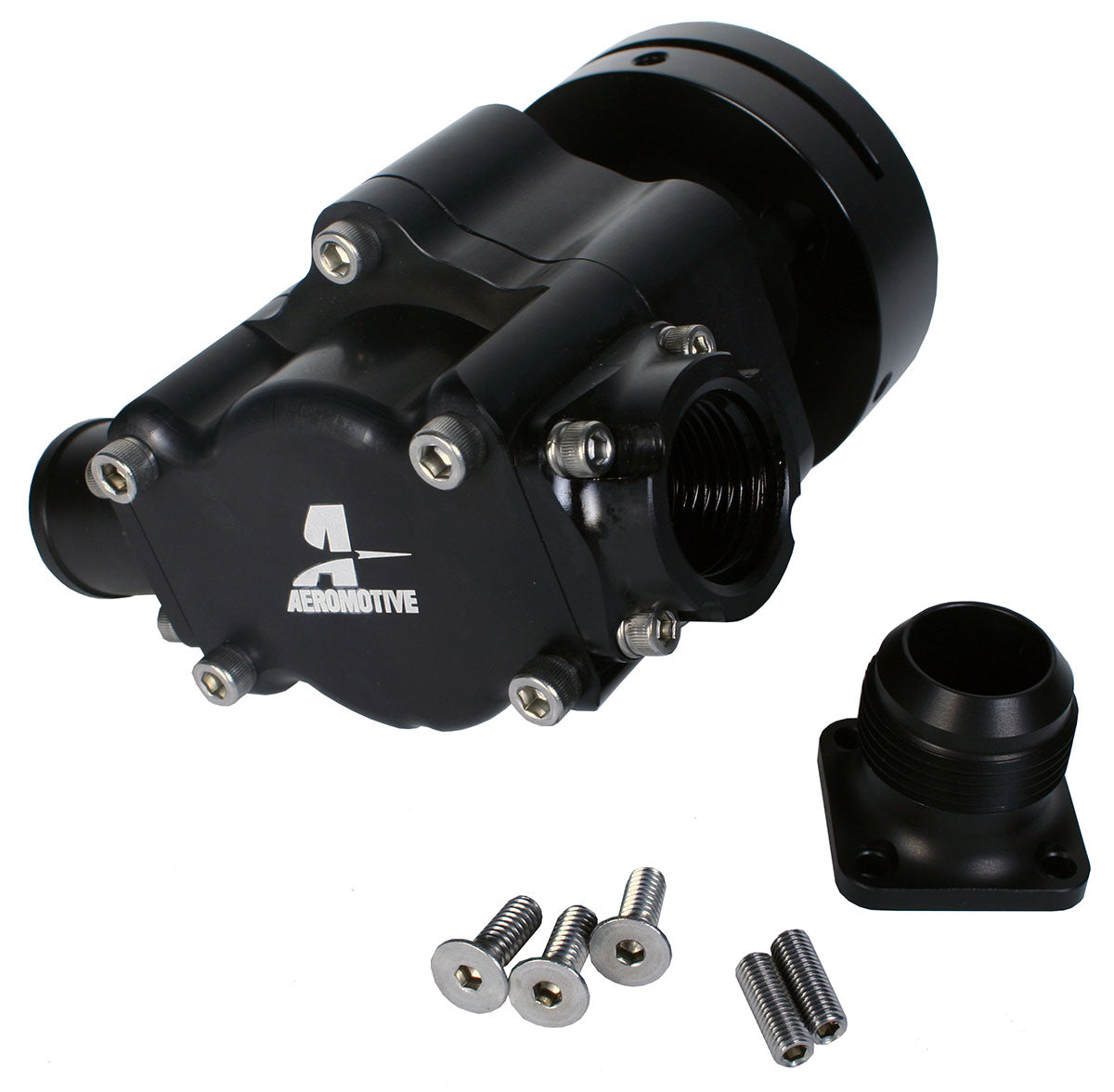

Atomic Hex Drive Fuel Pump 12 GPH, -16 inlet

The Atomic Hex Drive Pump features the same performance you get from our Atomic Belt Drive Pump (P/N 11115), with the convenience of direct drive. The Hex Drive Fuel Pump features a hex drive shaft and mounting collar designed to be mounted and driven directly from the back of a properly prepared external oil pump or driven directly by the cam through a timing cover adapter.

Features:

• Utilises standard, 3/8" hex drive shaft and adjustable, billet mounting collar with standard 3-bolt mounting pattern and hardware. Flows in excess of 4500 lbs/hr (over 12 GPM at 100 PSI).
• Supports over 5000 HP gas, 2500 HP methanol.
• Type III hard coat anodise protects the 6061 T6 aircraft aluminium alloy housing.
• Features removable ports with a 1.25" inlet and ORB-12 outlet port.
• EFI applications require regulator P/N 13113.

Note: Electric Priming Kit available - P/N 17301
