Billet Oil Cooler Sandwich Adapter Universal fitment, with 2 x -8ORB ports & 2 x1/8" NPT ports, Black anodised finish
Billet Oil Cooler Sandwich Adapter Universal fitment, with 2 x -8ORB ports & 2 x1/8" NPT ports, Black anodised finish

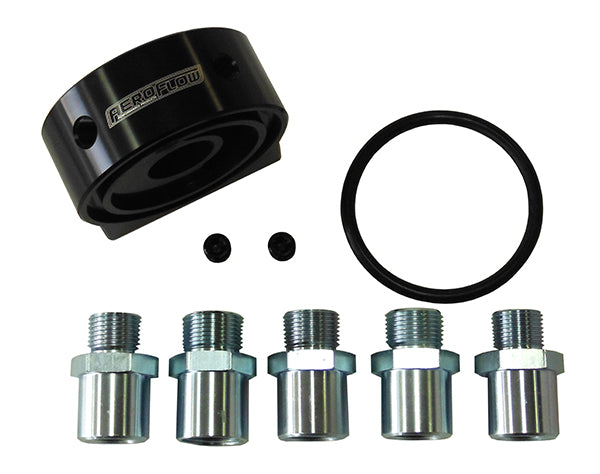

The Aeroflow Performance universal billet oil cooler and sender adapter is designedto sit in-between the standardoil filter and the vehicle engine block. It is required for most engine oil cooler installations to provide oil flow to the external oil cooler. It also allows an adaptation of a gauge sender or sensors to be installed at the engine. In most cases the factory OE oil filter will work with this sandwich adaptor. It is designed as a universal fitment item and mayor may not fit your application.
The main body is made from billet 6061 aluminium, then anodised blackfor great looks and corrosion resistance. This features two labelled inlet and outlet -8ANORB ports provided for plumbing the engine oil to andfrom the sandwich adapter. These Ports must be used. Two 1/8" NPT ports and plugs re provided for auxiliary sensors.
The oil filter landing will take oil filter O-ring sizes from inner diameter of 65mm (2-9/16") to outer diameter 71mm (2-13/16").In some applications when fitting this sandwich adaptor,it may interfere with the frame or exhaust systems and anew shorter depth filter may need to be used for ground clearance.
This includesthe following thread inserts that fit most makes and models(Holden, Ford, Nissan, Toyota,Subaru, Honda & BMW) that are the same thread on both male and female sides:
3/4"-16 thread insert
13/16"-16 thread insert
M18 x 1.5mmthread insert
M20 x 1.5mmthread insert
M22 x 1.5mmthread insert
