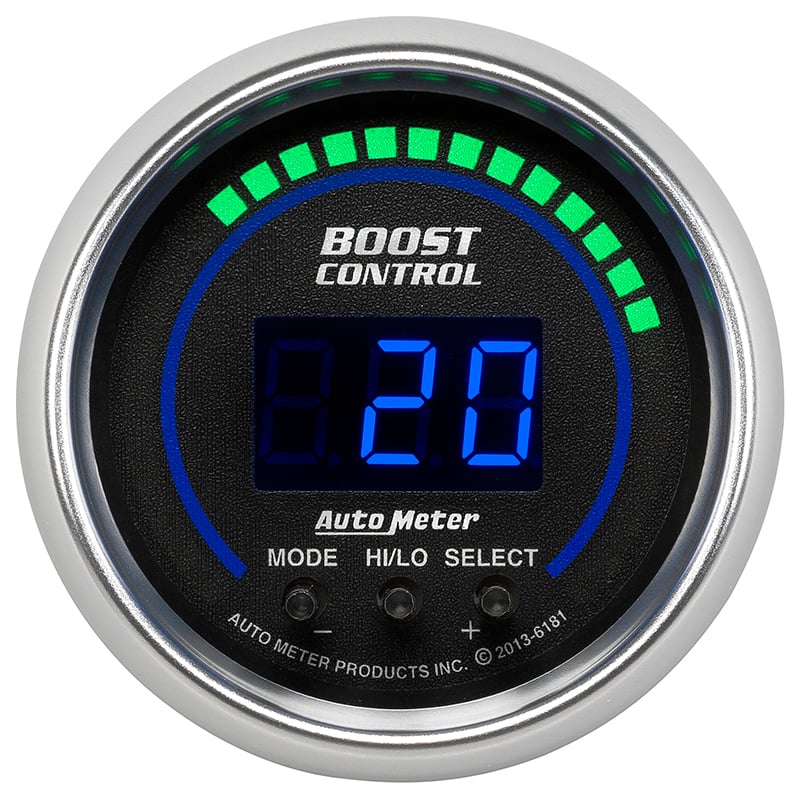

Boost Controller 2-1/16" Cobalt

Offering an unparalleled feature set, the Auto Meter Boost Controller redefines what a boost controller shouldbe. In addition to the standard hi/lo mode, boost by RPM and boost by gear give youabsolute control of your powerdelivery. Initial setup is incredibly simple using an intuitive menu and a evolutionary gear capture process. Configurable warningswith peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show onlythe needed range for your application. Auto Meter’s Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection,nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Displaypressure in PSI, BAR, or kPa and easily data log and display with or without real-time barometric compensation. A direct plug wiring harness is included forease of installation.

High/Low Boost Modes
Essentially twodifferent, configurable boost settings that can be switched between with the push of a button. Perfect for the daily driver/weekend warrior, power can be called upon only when you need it striking the perfect balance between performance and efficiency.

Boost By RPM/Boost By Gear
IntegratingAuto Meter’s most advanced digital tachometer circuit, your boost curve can be tuned precisely at 500 RPM increments to minimize wheel spin and put more power to theground. Taking it a step further, you can even custom tailor boost levels to individual transmission gears for the ultimate in control.

One Touch Gear Capture
Because our Boost Controller looks at not only engine speed, but also vehicle speed, you can instantly capture each gear with the push of a button. Simply drive normally in your chosen gear and hit the capture button. Our advanced algorithms determine your exact gear in real time based on the ratio of these two inputs.

Peak Recall
One touchrecall of the highest boost pressure seen during a given time period.
ConfigurableWarnings w/ Overboost Protection
Easy to set parameters provide a full facewarning if boost pressure moves beyond your settings. The warning doubles in speed if you pass it by 2 psi or more. The controller can also automatically return the system to wastegate spring pressure in the instance of overboost conditions, potentially averting catastrophic damage to your engine.

Pro Control Output
Using your boost measurements, the Auto Meter Boost Controller can automatically trigger externaldevices such as water/methanolinjection, intercooler sprayer, or nitrous solenoids at a given boost pressure level, either on the high or low end of the scale.

Pro Control Input
Not only will the Auto Meter Boost Controller control external devices, it can also be controlled by external devices. Any ground signal sent to the Pro Control input will immediately back boost levels down to wastegate spring pressure.

Display
Highly versatile, boost pressure can be read in inHG/PSI, cmHG/BAR or kPa. Real time barometric compensation can also be turned on of off to account for changes in altitude and environmental conditions.

DataLogger Output
Ithas traditionally been a huge challenge to log both vacuum and boost. Our revolutionary approach to measurement allowsfor simple, configurable scalelogging of both in either PSIA(absolute) or PSIG (gauge display)

Tach/Speed Signal Diagnostic
As both signalsare critical to extracting themost from your Boost Controller, both signals feature real time on board diagnostics to verify the presence of proper signals. Taking it one step further, ifthe signal is interrupted during operation, the gauge will provide a warning.

A Comprehensive Package
Everything fromthe gauge to the wiring harness and sensor to the electronic boost control solenoid is included in the package. There are no additional pieces necessary topurchase to install and take advantage of every function with most applications.

Features:

• EZ On-Controller Programming -No Need for External Modules
• Exclusive Progressive Overboost Warning System and Peak Recall
• Patented Pro-Control™ Input Allows External Devices to Trigger Safety Mode and Prevent EngineDamage. Patented Pro-Control™ Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection
• ConfigurableData Logger Output for Easy ECU or Data Logger Integration.
• Ideal forSingle or Twin Turbo Turbocharged Applications. NotFor Diesel Applications or Wastegate-less Setups
