OIL FILTER AEROFLOW Holden V6 SHORT M18 x 1.5mm - Compatible with Z154 HP-1001

Fits Holden Commodore VN-VY (1988–2004) with 3.8L V6 engine. A popular choice for speedway stockcars and Holden V6 EcoTec builds, this filter delivers reliable performance in high-demand racing applications.

Aeroflow oil filters have been designed to incorporate
all the latest technology to provide great filtration with
minimal restriction so that your engine performs at its best
with great protection. Aeroflow filters use an improved
coil spring design to replace the commonly used “leaf”
style spring and incorporate CNC machined thread
for a precise fit. An Ultra high-Temp silicone anti-drain
back valve in some models helps to prevent dry starts
increasing engine life. An extra-thick backing plate and
housing offers superior strength and pressure fatigue
resistance which provides added protection against
pressure surges in racing applications, construction also
includes a hi-flow heavy duty base plate that features a
fully tucked double seam. Aeroflow oil filters use a Buna-N
rubber gasket which is compatible with most racing fuels
and lubricants. 24mm - 15/16” hex release nut allows
simple and easy removal and incorporates a hole for
use with lock wire. Aeroflow oil filters use a 30 micron
premium pleated synthetic blend media element that
provides increased filtration at high flow rates with minimal
pressure drop as well as a perforated centre
tube that allows more flow area & eliminates media
wear during pleat movement.

While we don't stock the entire Aeroflow oil filter range, we have access to the full selection and can source models on request. Contact us for availability of alternative fitments including Toyota, Suzuki, Ford, Mazda, Honda, Hyundai, Mitsubishi, Jeep, Nissan, and Chevrolet applications.

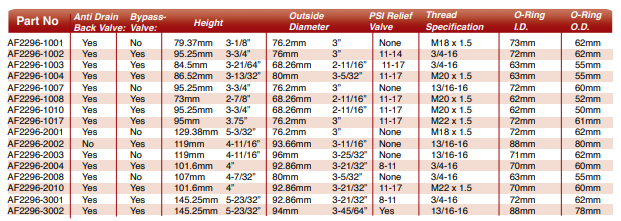

AF2296-1001 Holden V6 short - 97mm Z154 HP-1001
AF2296-1002 Toyota, Suzuki Z82, Z125, Z418, Z463, Z632 HP-1002
AF2296-1003 Holden / Toyota Z158, Z386, Z432, Z442 HP-1003
AF2296-1004 Ford, Mazda, Honda, Holden, Hyundai Z79A HP-1004
AF2296-1007 Holden V8 short Z160 HP1007
AF2296-1008 Mazda, Mitsubishi Evo Lancer Z436, Z445 HP-1008
AF2296-1010 Mitsubishi, Mazda Z411, Z547 HP-1010
AF2296-1017 Holden V8 LS2 6.0 Litre Z663 HP-1017
AF2296-2001 Holden V6 Z154 HP-2001
AF2296-2002 Chev short Z40 HP-2002
AF2296-2003 Holden V8 Long Z30 & Z80 HP-2003
AF2296-2004 Jeep / Toyota - Late Jeep Cherokee Z10/Z89A HP-2004
AF2296-2008 Holden / Nissan Z145A HP-2008
AF2296-2010 Ford Falcon BA-FG 5.4L V8, BF FPV F6 Z516 HP-2010
AF2296-3001 Ford Falcon 6 & 8 Fits Ford 6 & 8 cyl Z9 HP-3001
AF2296-3002 Chev long Z24 HP-3002
