Replacement AdjustableHeight Piston Suit 1300 Series Bolt On Style Bearings

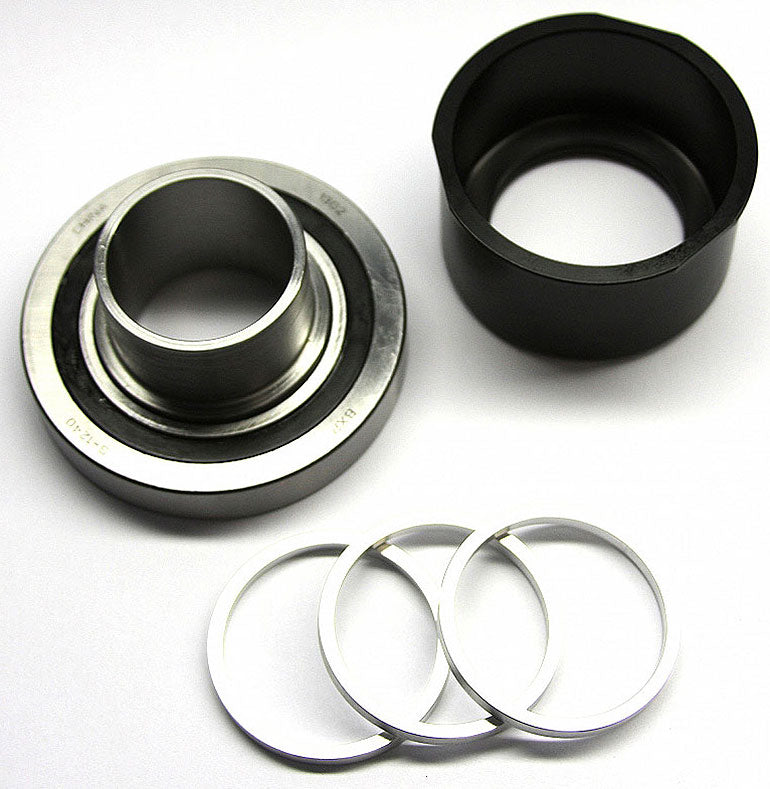

McLeod offers an exclusive replacement adjustable height piston for the 1300 series bolt on style bearings. These pistons are adjustable to three different height locations to help maintain proper mechanical linkage geometry. McLeod Adjustable piston kits utilize bearings with angular contact, constantrunning bearings for long lifeand durability.

Measurementsbelow are from the face of thethrow-out bearing to the face of the transmission
when the bearing is fully compressed.

• 0 Spacers -3.280" to 3.580"
• 1 Spacers - 3.425" to 3.725"
• 2 Spacers - 3.585" to 3.885"
• 3 Spacers - 3.735" to 4.035"

Note: All machined parts have a tolerance of +/- .005"
